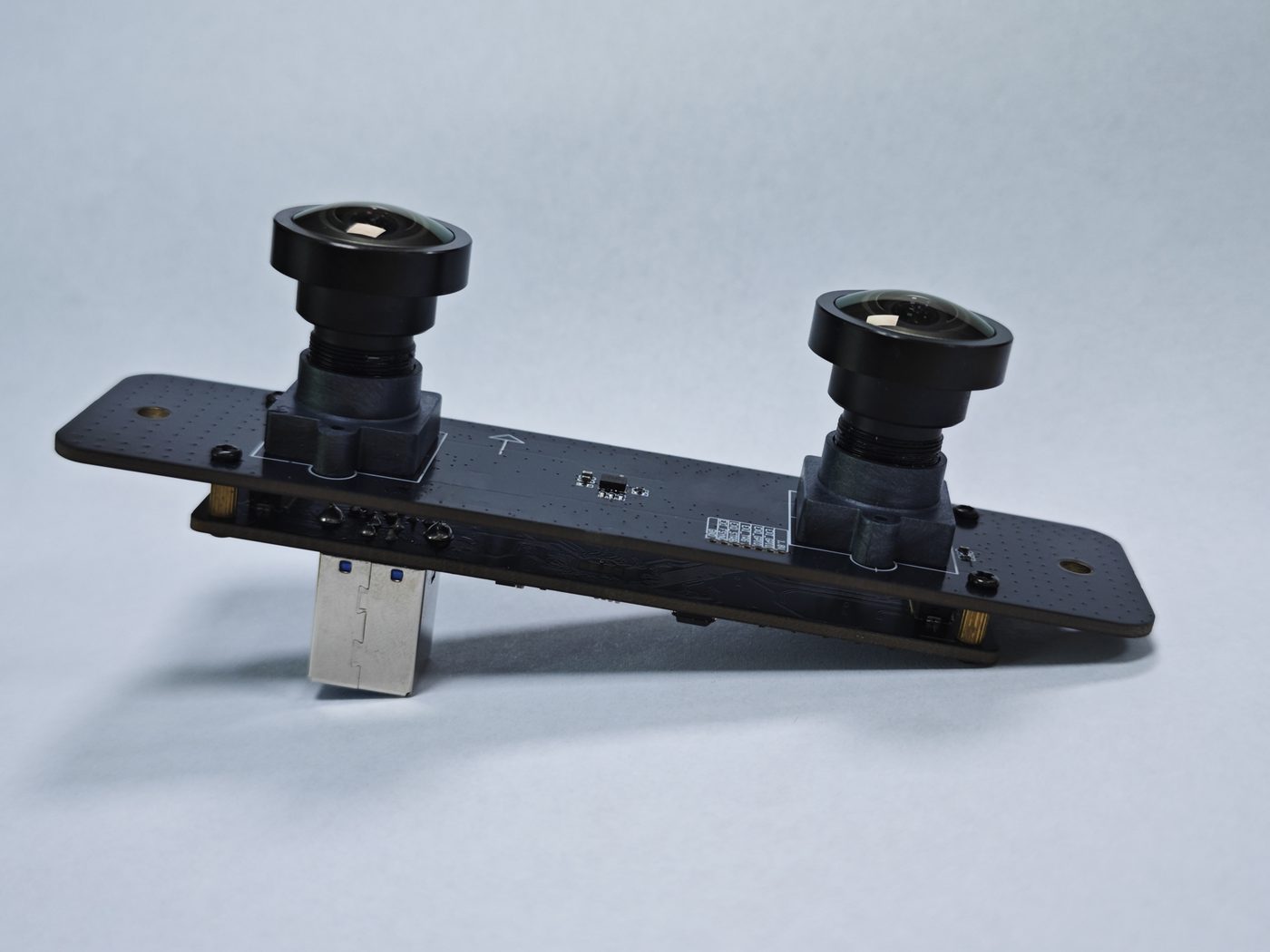

HJY1A-W10-SM Dual 1.3MP Global Shutter Stereo Camera Module with IMU | USB 3.0

Applications

Where this module ships

Built for spatial-computing and robotics platforms that need synchronized stereo frames plus inertial data over a single USB 3.0 cable — in an 11.2 mm slim profile. If yours isn't listed, ask us about customization.

🕶️

AR / VR Inside-Out Tracking

Global shutter + 600 Hz 6-axis IMU on one board — headsets, smart glasses and controllers.

🤖

Robotics SLAM / VIO

Visual-inertial odometry for mobile robots and AMRs. Hardware-synced frames, tight IMU timestamping.

🚁

Drones & Aerial

Lightweight dual-camera for navigation, obstacle avoidance and aerial mapping payloads.

📦

3D Scanning & Depth

Fixed factory baseline and synchronized exposure for dense stereo depth and 3D reconstruction.

🏃

Sports & Biomechanics

No rolling-shutter skew at 60 fps — motion capture and multi-view kinematics analysis.

🏭

Industrial Inspection

Simultaneous dual-view capture for gauging, alignment and pick-and-place guidance.

Specifications

Spec sheet

Baseline spec below. Every parameter can be customized for your application — lens, FOV, firmware and form factor.

Model	HJY1A-W10-SM-V1.0 (dual-lens stereo, single PCB)
Sensor	2× 1/3.7″ CMOS global shutter, 3.0 µm × 3.0 µm
Resolution	1280×960 per camera · 2560×960 side-by-side
Max frame rate	60 fps @ 2560×960 (both cameras synchronized)
Dynamic range	WDR 61.5 dB · HDR mode 91.5 dB
Lens	5P, F/2.2, EFL 1.65 mm, BFL 1.088 mm
FOV	D120° · H98° · V80° (TV distortion < 10%)
IR filter	650 ± 10 nm
IMU	TDK InvenSense ICM-42688-P (6-axis, 600 Hz output)
Output format	MJPEG / YUV (UVC)
Interface	USB 3.0 SMD Type-C · DC 5 V · 200 mA
Module size	90 × 31 × 11.2 mm (±0.2 mm)
Object distance	30 cm – ∞
Operating temp	−20 °C to +70 °C (storage −20 °C to +80 °C)
OS support	Windows XP / 7 / 10+, Linux 2.6.26+, Android 4.0+
Assembly	SMT, RoHS-compliant

Need the full spec sheet? Download the PDF datasheet or request a customized version below.

⬇ Download HJY1A-W10 Datasheet (PDF)

Also available in this family: HJY1A-G8 (2MP AR0234, D160°, 4K-wide side-by-side).

Mechanical & IMU

Drawing & IMU parameters

90 × 31 mm single-PCB stereo board with M12×P0.5 lens holders and DF12NB board-to-board connectors — the baseline is fixed at the factory, so no per-unit calibration drift.

HJY1A stereo camera module mechanical drawing, dimensions in mm — Mechanical drawing (unit: mm) — HJY1A family, 90 × 31 mm PCB, M12×P0.5 mounts

ICM-42688-P 6-axis IMU key parameters table — Built-in TDK InvenSense ICM-42688-P 6-axis IMU — 600 Hz output, ready for VIO / inside-out tracking

Why us

A manufacturer, not a trading company

You're talking to the factory that designs and builds the module — not a reseller. That means faster sampling, real customization, transparent pricing and direct engineering support.

In-house production lines

Own SMT, AA (active alignment) and reliability testing. We control yield, lead time and quality end-to-end.

Real ODM customization

Custom FOV, lens, firmware, FPC length, connectors and housing. Engineering team supports your design-in from spec to mass production.

First-tier sensors only

SONY IMX and OmniVision OV sensors — proven, datasheet-backed image sensors, no grey-market chips.

Fast sampling

Standard samples in ~7 days. Custom builds quoted with realistic timelines — we tell you what's feasible.

Quality you can audit

Reliability testing (high/low temp, vibration, drop) on every build. We welcome factory audits and video line tours.

Direct engineering access

Talk to the engineers who designed your module, not a sales queue. Specs, debug and design-in support without layers.

See the line before you buy

We're a Shenzhen-based camera module manufacturer with integrated SMT, optical assembly and test capacity. For B2B buyers, the ability to audit the line — not just read a brochure — is what separates a real factory from a reseller.

SMT production line — module PCBA in-house
AA (active alignment) — precise sensor-to-lens assembly for sharpness and yield
Clean room — dust-controlled optical assembly
Reliability lab — thermal, vibration, drop and aging tests
Video line tour available on request before first order
